Feature Article January 31, 2013:







Duran Ventures Focused on Achieving Production in Peru



New board of directors, which includes two mining engineers, have forged a plan for management to unleash significant value at its properties in Peru with minimal dilution by taking DRV to meaningful revenue generating status through joint ventures with proven miners.





Duran Ventures Inc.

(TSX-V: DRV) (OTC: DUVNF) (Frankfurt: 6D7) (BVL: DRV)



  • Stable, mining friendly region

  • Exceptional management & skilled technical leadership

The following 4 properties of Duran Ventures are being advanced toward potential meaningful revenue generation, three of the properties are being advanced by well funded proven miners:

  • Minasnioc high sulphidation gold-silver project, central Peru; Rio Alto Mining will earn 70% interest by completing an initial resource and advancing the project to the point where it has obtained mining permits. Recently obtained data reveal the property contains an advanced stage Au-Ag deposit that was previously drilled by Barrick, having received 41 drill holes (over 5863 m of drilling), demonstrating a deposit with potential similar, in part, to what Rio Alto is currently successfully heap leach mining in Peru. Results include 1.2 g/t Au over 17.7 m, 1.6 g/t Au over 18.4 m, 0.55 g/t Au over 55.8 m. The mineralization is classic vuggy silica and alunite alteration with geology similar to Pierina and Alto Chicama Gold-Silver mines in Peru. The high sulphidation target is similar to nearby IRL’s Corihuarmi Gold Mine and Pan American Silver’s Pico Machay Gold Project.

  • Aquila copper-molybdenum project, central Peru (100% owned flagship); Aguila is now demonstrating world class tonnage potential and is approaching the point to consider commissioning a Preliminary Economic Assessment (PEA). A first resource calculation was issued March 8, 2012 revealing 375 Million lbs Copper & 22 Million lbs Molybdenum Indicated and 2.1 Billion lbs Copper & 166 Million lbs Molybdenum Inferred, this was based on 23,000+ metres of core drilling from 2007 - 2011. DRV.V has established mineralization over an area ~800m x 400m x 500+m (depth). Aguila has yielded impressive grades in the order of 0.5 - 0.6%+ copper (ie.718m grading 0.555% Cu and 0.041% Mo = 1%+ copper equivalent) in the main intrusive. This expanding deposit is host to a past producing open-pit mine and is part of a major mineralized district actively taking shape with Penoles active on its own porphyry adjacent DRV's claim line. A 2013 drill program is now underway focusing on the central pit area with the objective to expand the higher grade measured and indicated resource.

  • Ichuña Cu-Ag-Au project, central Peru; Rio Alto Mining to earn 65% by spending $8million and paying $500,000. A 4000 meter diamond drill program is currently planned. Duran's 1000 hectares Ichuña property is located ~3 km from the Gold Fields-Buenaventura 7.6 M Oz Gold Equivalent Chucapaca Discovery. Duran staked this land years before the big area discovery and geophysics indicate a similar anomaly exists to potentially host a similar find. DRV.V is permitted and ready to drill. Surface values at Ichuña as high as 10.2% Cu and associated silver up to 1,645 g Ag/T.

  • Don Pancho Silver-Lead-Zinc project - central Peru; A private Peruvian mining company is to earn 70% interest in Duran's 600 hectares Don Pancho's polymetallic project in consideration of a US$2,030,000 payment schedule to DRV, completion of US$3,500,000 in exploration, and undertaking to commence an economic study. The property is proximal to the 2000TPD mill of Trevali Resources' Santander Mine. There is a large breccia body on the Don Pancho property that runs ~400m wide and 800m long that has numerous lead-zinc showings; samples are up to 250 grams of silver (~8-10 ounces) per tonne and 4% - 5% lead-zinc. These are very similar numbers as to the Trevali numbers and it is the same geology.

Notes from the Editor on Featured Article:



Valuation Commentary: Duran Ventures Inc. (TSX-V: DRV) (OTC: DUVNF) (Frankfurt: 6D7) (BVL: DRV) is a junior miner focused on achieving production in Peru by associating itself with well financed proven miners able and committed to taking several of Duran's projects to revenue generating status. DRV has a market cap under $25 million, presents exceptional value, and appears poised for considerable share price appreciation as projects advance and the reality of the accomplishments underway are appreciated by the markets.



Duran Ventures has entered into joint ventures (JV) on three of its properties with well funded proven miners that will see the projects advanced without dilution to Duran's share structure. Rio Alto Mining's decision to JV with Duran is particularly significant since this is Rio Alto's first foray outside its exceptionally successful 200,000+oz gold per annum La Arena project in central Peru. In its early days Rio Alto mainly funded itself using the South American capital markets and created a lot of happy shareholders in its wake, with initial financings between ~36 cents to ~$2 and the stock now sitting above well above $5 (see historic chart with annotations here) -- Duran's aim is to replicate that type of success in shares of DRV and Rio Alto's belief is that Duran's properties offer the ability to deliver. Rio Alto's CEO, Alex Black, is now on the board of directors of DRV offering guidance. The terms of the JV on Duran's Minasnioc high sulphidation gold-silver project are such that the potential outcome from this one project alone to be a 'company-maker' in its own right is phenomenal; the terms essentially state that Rio Alto can earn a 70% interest by completing an initial resource and advancing the project to the point where it has obtained mining permits.



In order to facilitate matters, this Q4 2012 two mining engineers joined Duran's board of directors and DRV also obtained a listing on the Lima Stock Exchange to better access the South American capital markets and better reflect the fact it's properties, people, and focus are 100% in Peru.



A summary of the 4 properties of Duran Ventures that are being advanced toward potential meaningful revenue generation are seen on the left. Important to note is that Duran's flagship Aguila copper-molybdenum project is still 100% owned, which is a good thing as what is occurring next door on Peñoles' ground is adding remarkable value; Mining giant Peñoles has been intensively drilling (10 drill rigs were on site in 2012) what is understood to be a separate porphyry body just off Duran's claim line to the south and it also shares a separate porphyry body in the SW section of Duran's claim group. Any mine Peñoles hopes to build would ultimately need to involve Duran as Duran has a sizeable ore body on one side of the gully and all the flat land across the gully and sloping up to where Peñoles is drilling; DRV.V has the only logical place to build plus it would make no sense for two mines to be built. The inherent value of Duran's flagship Aquila property should materialize in share price appreciation for DRV.V shareholders as this scenario approaches a climax.



Duran’s Aguila project is now demonstrating world class tonnage potential and a resource (~2.5 billion lbs Copper & 188 million lbs Molybdenum*) of this size now commands a market cap for DRV.V comparable to many of the other copper explorers in Peru that currently in the $100M - $200M+ range (DRV.V market cap is currently under $25M).

With only ~222,361,435 shares outstanding (~267M fully diluted) and trading under CDN$0.15 DRV.V is poised for significant upside revaluation. The risk-reward characteristics are highly advantageous for investors establishing a long position in DRV.V as the current market cap of DRV.V relative to the inherent value of their projects seem disproportionate. To underscore the point, based on the resource at its flagship Aguila property alone the copper in situ is for sale under 1.5 cents/lb and molybdenum under 20 cents/lb via shares of DRV.



     *in all categories - refer to table 1 in article below for breakdown

Content found herein is not investment advice see Terms of Use, Disclosure & Disclaimer

Figure 1. Subject Company's Logo & Imagery

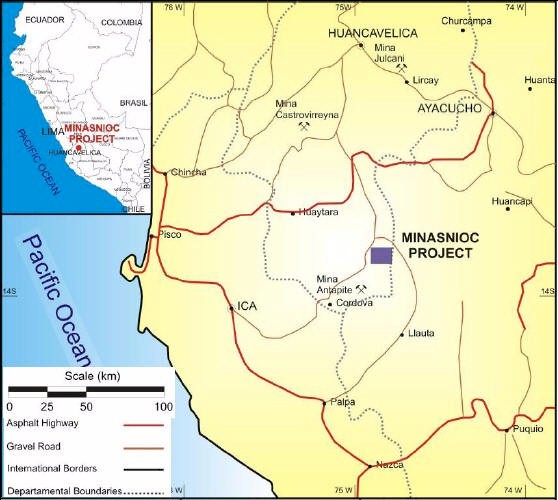

Figure 2. Location map of DRV's properties in Peru, click map to enlarge & expand on details of region.

Duran Ventures Inc. (TSX-V: DRV)



       Duran Ventures Inc. is a Peruvian focused mineral exploration mining company listed on the TSX Venture Exchange (ticker symbol DRV) (OTC: DUVNF) (Frankfurt: 6D7) (BVL: DRV). The Company has come to our attention due, in part, to the exceptional opportunity afforded shareholders as DRV.V is advancing key concessions located in Central Peru toward meaningful revenue generating status through joint ventures with proven miners, and is eagerly watching the situation at its 100% owned flagship Aguila copper-molybdenum porphyry deposit where geologists agree the deposit is part of a large porphyry cluster in a major mineral district actively taking shape with Peñoles and Duran Ventures holding key ground. DRV has defined a sizeable deposit at Aguila and has published this year a first resource estimate of 375 Million lbs Copper & 22 Million lbs Molybdenum Indicated and 2.1 Billion lbs Copper & 166 Million lbs Molybdenum Inferred.



All of Duran Ventures' properties are located in mining friendly, politically stable, Peru. The properties were acquired as a result of having a highly skilled technical and management team active in Peru for over 17 years, able to secure (and outmaneuver other interested parties for) some of the most prospective targets in the country. Mining Marketwatch Journal provides insight into each of Duran Ventures properties in the sections below.



The top 4 properties of Duran Ventures that are being advanced toward potential meaningful revenue generation are profiled in the following order below:



#1) Minasnioc high sulphidation gold project) -- The new JV with Rio Alto Mining on Duran's Minasnioc high sulphidation gold project is profiled first below as it is particularly significant since this is Rio Alto's first foray outside its exceptionally successful 200,000+oz gold La Arena project in central Peru (which Rio accomplished in under 2 years).



#2) Aguila copper-molybdenum porphyry -- The 100% owned flagship Aguila copper-molybdenum project is demonstrating world class tonnage potential and approaching a climax with Penoles having been active, drilling with 10 drill rigs this summer, on its adjacent ground. DRV.V has a 2013 drill program now underway focusing on the central pit area with the objective to expand the higher grade measured and indicated resource.

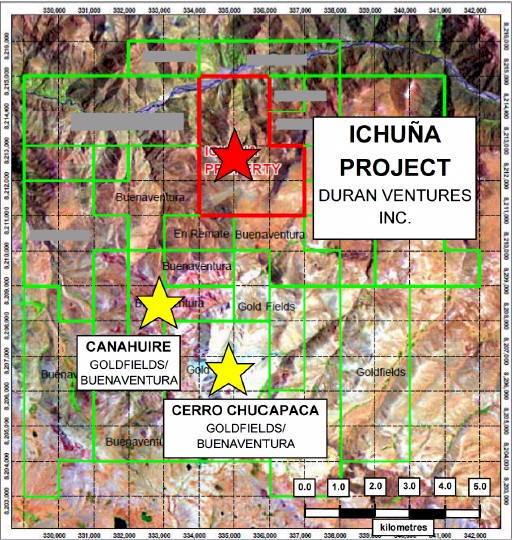

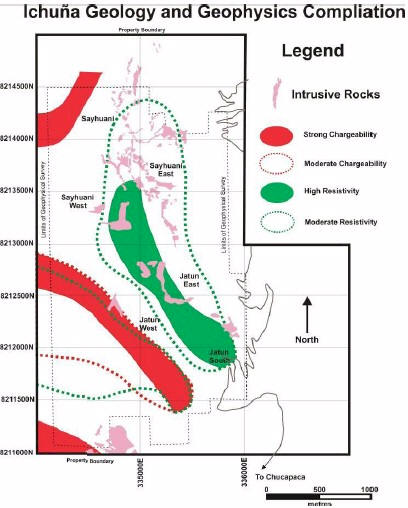

#3) Ichuña copper-silver project -- Ichuna is another Rio Alto Mining JV, and is located only ~3 km from new 7.6M Oz Gold eqiv. Chucapaca discovery of Gold Fields.

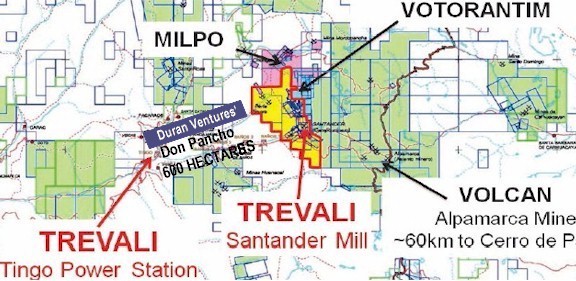

#4) Don Pancho Silver-Lead-Zinc Project -- Duran has recently entered into a strong JV with a well funded private Peruvian company on this property. The property is proximal to the 2000TPD mill of Trevali Resources' Santander Silver-Lead-Zinc Mine and it is believed Duran's Don Pancho property is potentially equally as rich.



1) Minasnioc High Sulphidation Gold Project - Central Peru - in JV with Rio Alto Mining (Rio has option to earn up to 70%)



Joint venture terms: For specific terms of JV see related January 25, 2013 news release entitled "Duran Signs Definitive Agreement with Rio Alto Mining for Minasnioc and Ichuña Properties in Perú"; In short, Rio Alto Mining will earn 70% interest by completing an initial resource and advancing the project to the point where it has obtained mining permits. Duran will also receive $1 million.



Location & background: The Minasnioc property covers 3800 hectares and is located in the Department Huancavelica, approximately 300 kilometres southeast of Lima, Perú. The Minasnioc property has seen previous intensive exploration campaigns by Barrick Gold Corporation ("Barrick") and Compañia de Minas Buenaventura S.A.C ("Buenaventura") between 2001 and 2004, which included surface channel sampling and drilling. Duran recently acquired the historical geological and drill data from Barrick.

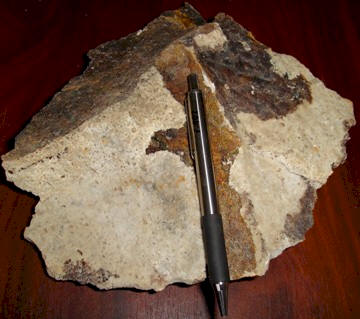

Figure 4. Vuggy silica ore running ~2 g/T gold



• High sulphidation epithermal gold-silver project, similar to Barrick’s Pierina and Lagunas Norte gold-silver mines.


• 3,800 hectare property in the Department of Huancavelica, Peru.



• Favorable infrastructure.


• Located 40 km from Compañia de Minas Buenaventura’s Antapite gold mine (2009 production of 31,004 oz Au and 50,100 oz Ag.

• Work completed by Barrick/Hochschild JV from 2001 to 2004:
  41 drill holes and over 5863 m of drilling
           • Hole MNP 16: 1.2 g/t Au over 17.7 m
           • Hole MNP 23: 1.6 g/t Au over 18.4 m
           • Hole MNP 02: 0.55 g/t Au over 55.8 m

Awarded to Duran in closed government auction in 2010

This property came open for staking in May 2010 and Duran was awarded it in a closed government auction. Barrick, which was the previous operator and had drilled it, was owner of the surrounding land and was also bidding on the property. Certainly Barrick would not have intentionally let such an advanced project with 41 drill holes and quality values to have intentionally lapsed; Mining MarketWatch Journal figures Barrick had somehow unintentionally failed in some clerical type of maintenance on the claim and was attempting to reclaim it when Duran was astutely there to outbid it.



High Sulphidation Target similar to IRL’s Corihuarmi Gold Mine and Pan American Silver’s Pico Machay Gold Project


Low Capital Expenditures and low cash cost per ounce

What had peaked Duran's geological acumen to bid on the property is the vuggy silica mineralization found on Minasnioc. The benefit of this type of ore is that it can be blasted and put in a dump leach easily. Several highly profitable mines have been brought from exploration to production with nominal capital outlay with this type of ore.

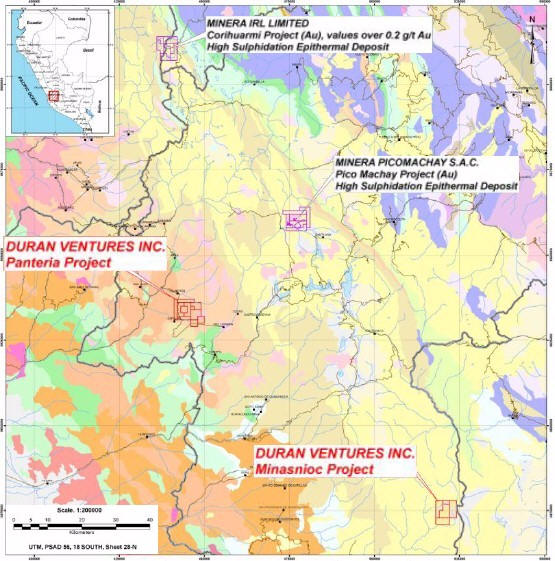

Figure 5. Map showing Duran's Minasnioc project in same geological rock as IRL’s Corihuarmi Gold Mine and Pan American Silver’s Pico Machay Gold Project, mineralization amenable to low capital expenditures and low cash cost per ounce.



The economics of these types of deposits can be  phenomenal

Excerpt from nearby Minera IRL's Corihuarmi Gold Mine's description of their own property underscores the point; "The project was completed on schedule in the first quarter of 2008 for a capital cost of US$20 million. The first gold pour from Corihuarmi was on 15 March 2008 and over 117,000 ounces have been produced through the end of 2010. The capital cost was recovered from ex-mine, pre-tax cash flow within the first 7 months." (click here to go to source for full copy). The numbers are phenomenal when a miner is able to zero in on such deposits; in 2011, Barrick's Lagunas Norte produced 763,000 ounces of gold at total cash costs of $269 per ounces. Similarly, Pan American Silver's Pico Machay Gold Project is such a good property is it can be brought into heap leach production for ~$12 million and the first years production could push 44K ounces gold.

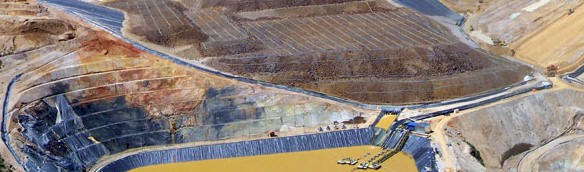

Figure 6. Rio Alto Mining is looking to replicate the success, in part, it has had at its La Arena heap leach mining gold project (seen in image above).



Rio Alto Mining, the JV partner that will carry Duran's Minasnioc project to mining permit stage, has been remarkably successful at its heap leach gold mining La Arena project and is looking to replicate that success, in part, with Duran. Rio Alto Mining also has a proven knack for advancing projects without being bogged down in the minutia of expensive drawn-out studies; a good video presentation of Rio Alto's CEO Alex Black at the Denver Gold forum can be seen here http://www.denvergoldforum.org/dgf12/webcast/webcast-day-1.html -- it provides insight into these types of deposits, the financial strength of Duran's JV partner, and their geological/mining acumen. When watching this video bare in mind this JV with Duran is Rio Alto's first foray outside of their La Arena project.

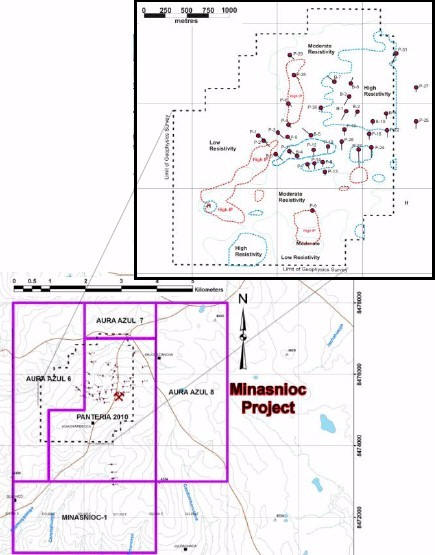

Figure 7. Duran's Minasnioc claim map. The original claim section that Duran was awarded in the closed government auction is the central section of the image above with the intensive drilling having been conducted upon it. Barrick subsequently sold Duran the related data and surrounding claims.

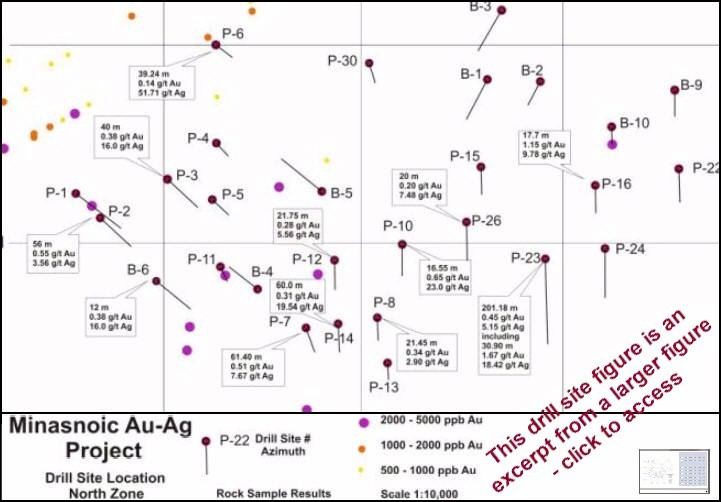

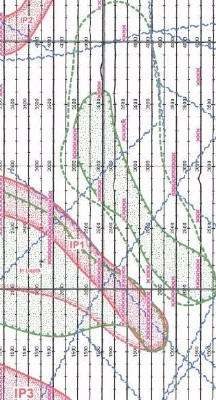

Figure 8. Drill site location figure excerpt, click the image to access full PFD version. The block sections are 500 metres in distance.



In the image above, the area above P1 & P2 drill holes with dots is believed to be gold laden colluvium (loose rock that has been deposited) which appears to be run-of-mine. The distance from P2 across to P16 is ~1,500 meters. The Minasnoic gold-silver project appears destined to become a mine with Rio Alto Mining at the helm, it is Mining MarketWatch Journal's opinion that Rio Alto will be able to get to mine permit stage (including impact studies and mine plan) and achieve its 70% for under $5 million and within a couple years. At that point Duran will either be bought out or they will put up their 30% of the required capital costs to initiate production. Rio Alto, as they did at La Arena, would simply put the Minasnoic  into production for minimal cost and expand with the cash flow generated.



Near-term exploration/plans for Minasnoic Q4 2012 - 2013



• Conduct initial exploration program with Rio Alto Mining Rio to earn 70% by completing an initial resource and obtaining mining permits over 3 years. Also completing $1 million payments.


• Minasnioc Social and Environmental Baseline Study – apply for drill permits for early 2013.

• Conduct drill program to confirm historical results.

------ ------ ------      ------ ------ ------



2) Aguila copper-molybdenum porphyry  - Central Peru - 100% Owned by Duran Ventures

Phenomenal grades World class bulk tonnage potential being developed Penoles active off claim line





Duran Ventures Aguila copper-molybdenum porphyry project is the most advanced of several projects (seen in purple to the left) the company has in close proximity to each other.


The Aguila, Pasacancha, and Mamanina Projects are 100% owned by Duran with no underlying royalties and have good community support.

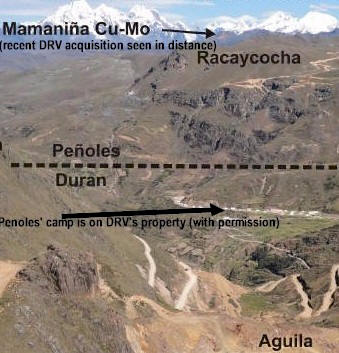

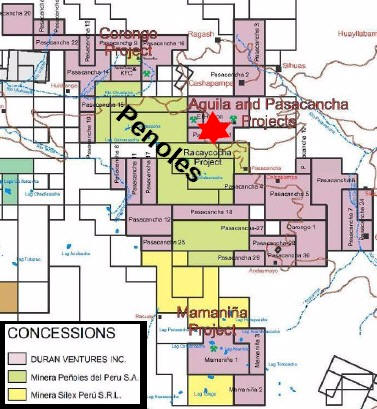

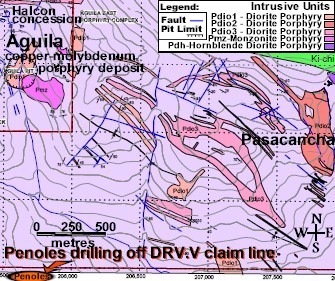

There is a Large copper discovery by Peñoles (seen in green to the left) 1 km south of Aguila.



Click to see area map. [PDF]



• Located in a prolific mining region near several major mines/projects including:
 – Antamina mine
(Cu-Zn-Mo-Ag – BHP Billiton, Teck, Xstrata and Mitsubishi)

 – Barrick’s Pierina mine (over 8 million ounces mined)
 – Magistral project
(total resource of 2.8B lbs Cu, 252M lbs Mo and 19M oz Ag)


• Favourable infrastructure with multiple access points from coast.


• Access to power: Aguila pit located 6 km to SW of Sihuas substation with 138 kV capacity to be expanded to 220 kV.


• 38 km from Canon Del Pato hydroelectric station with 264 MW capacity.


• Milpo to invest $400 million to develop the Magistral Project over the next 48 months.

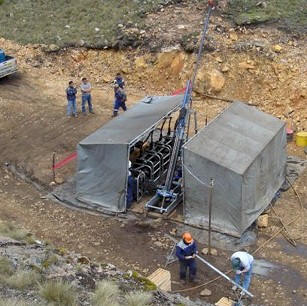

Drill Program Now Underway: On January 29, 2013 Druan announced it was initiating a new drill program on Aguila. This phase of drilling will focus in the Aguila central pit area where previous drilling intersected numerous, significant intersections of copper and molybdenum. The objective of this drill program is to expand the higher grade measure and indicated resource previously announced by the Company.



First resource estimate on Aguila, Excerpt from March 8, 2012 news release:



Duran Reports Initial Aguila Copper/Molybdenum Resource Estimate of 375 Million lbs Copper & 22 Million lbs Molybdenum Indicated and 2.1 Billion lbs Copper & 166 Million lbs Molybdenum Inferred;



The Total Resource estimate is presented below:







Quantity



Grade



Contained Metal





000' tonnes



Cu



Mo



CuEq



Cu



Mo

Category







%



%



%



Million lb.



Million lb.

Total Resources

























Indicated



27,750



0.61



0.036



0.79



374.5



22.0

Inferred



355,520



0.27



0.021



0.38



2,138.2



166.2



See Table 1 for the Mineral Resource Statement and Table 2 that shows the Resource Estimate and its Sensitivity to CuEq Cut-Off selection. The Aguila Project is located in Peru's north central Ancash District, 40 kilometres south of the Magistral copper/molybdenum deposit of MILPO and some 120 km north of Peru's largest polymetallic mine, the Antamina Mine of BHP/Xstrata/Teck/Mitsubishi.



Company CEO and President, Jeff Reeder is pleased to present this initial resource estimate for the Aguila Project. Mr. Reeder states "I have been active in Peru since 1995, and it is exciting to highlight the value that we saw in this area after staking this property many years ago. This initial mineral resource estimate demonstrates the pervasive extent of the Aguila Central Zone copper and molybdenum mineralization at the property." The 2011 drilling has left the mineralization open to the east, west-northwest and down the plunge of the intrusive to depth. Mr. Reeder states further, "Duran is excited by the surrounding potential. We have copper mineralized intrusive rocks to the west of the resource, classic high level porphyry style alteration at the historic Pasacancha Ag/Zn/Pb mine 2 km to the east, numerous undrilled IP targets at the property and the recently acquired Mamaniña property, that Company geologists have mapped as a copper mineralized intrusive that we believe is a related Cu/Mo/Au skarn/porphyry system. Duran believes that Aguila, along with the Magistral (MILPO), the Raycacocha (Penoles) and the Mamaniña properties are all occurring along a district copper porphyry trend. With significant targets available, we will continue our exploration with drilling planned to further expand the resource and to drill several of the other property targets that we have not yet tested."



Considering the size of the initial mineral resource estimate and the positive preliminary metallurgical results determined by G&T Metallurgical Services Ltd. (See News Release Jan. 12, 2012) confirming that the copper/molybdenum mineralization is amenable to standard flotation processing with good recoveries and no deleterious elements, plans are also being made by the Company to begin engineering studies later in 2012.



Table 1: Mineral Resource Statement* for Duran Ventures Inc., Aguila Project, Peru, SRK Consulting (Canada) Inc., March 8, 2012





Quantity



Grade



Contained Metal





000' tonnes



Cu



Mo



CuEq



Cu



Mo

Category







%



%



%



Million lb.



Million lb.

Open Pit Resources

























Indicated



27,750



0.61



0.04



0.79



374.5



22.0

Inferred



299,640



0.26



0.02



0.36



1,743.9



125.5

Underground Resources

























Inferred



55,880



0.32



0.03



0.48



394.2



40.7

Total Resources

























Indicated



27,750



0.61



0.04



0.79



374.5



22.0

Inferred



355,520



0.27



0.02



0.38



2,138.2



166.2

*

Mineral resources are not mineral reserves and do not have demonstrated economic viability. All figures have been rounded to reflect the relative accuracy of the estimates. Open pit mineral resources are reported at a cut-off grade of 0.22 percent copper equivalent and underground mineral resources are reported at a cut-off grade of 0.26 percent for copper equivalent. Copper equivalent grades are based on averaged metallurgical recoveries of 87 percent copper and 88 percent for molybdenum and metal prices assumptions of US$2.85 per pound of copper and US$13.85 per pound of molybdenum.



Table 2: Inferred and Indicated Model Quantities and Grade Estimates*, Aguila Project.





Inferred



Indicated

Cut-Off Grade CuEq%

Quantity
000' tonnes



Cu %



Mo %



CuEq %



Quantity
000' tonnes



Cu %



Mo %



CuEq %

0.150 616,110   0.22   0.016   0.30
0.200 445,210   0.25   0.019   0.35
0.220 382,550   0.27   0.021   0.37   27,750   0.61   0.036   0.79
0.240 327,600   0.28   0.022   0.39   27,750   0.61   0.036   0.79
0.260 278,850   0.30   0.024   0.42   27,730   0.61   0.036   0.79
0.280 237,140   0.32   0.025   0.44   27,710   0.61   0.036   0.79
0.295 210,500   0.33   0.026   0.46   27,700   0.61   0.036   0.79
0.300 201,950   0.34   0.027   0.47   27,690   0.61   0.036   0.79
0.325 164,700   0.36   0.029   0.50   27,580   0.62   0.036   0.79
0.340 146,560   0.38   0.030   0.52   27,470   0.62   0.036   0.80
0.360 126,540   0.40   0.031   0.55   27,280   0.62   0.036   0.80
*

The reader is cautioned that the figures in this table should not be misconstrued as a Mineral Resource Statement. The figures are only presented to show the sensitivity of the block model estimates to the selection of cut-off grade.

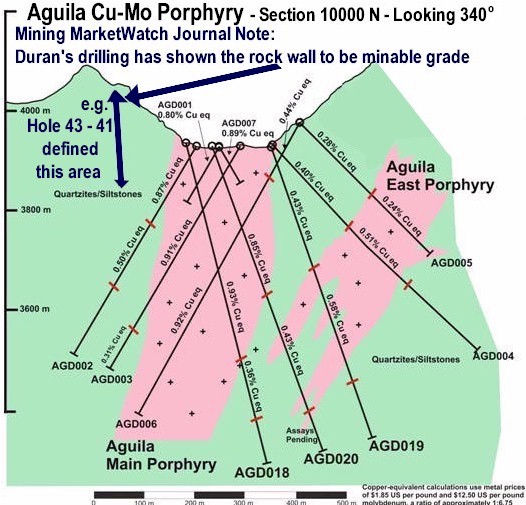

The Aguila deposit is a porphyry copper-molybdenum deposit hosted in hydrothermally altered diorite, quartz diorite, and monzonite porphyry rocks that have intruded rocks of the Chicama and Chimu Formations. Copper and molybdenum mineralization consists of disseminated and stockwork style chalcopyrite and molybdenite in sediments and intrusives. Alteration over the deposit consists of potassic alteration with an argillic retrograde overprint. Supergene mineralization is not associated with this deposit because of high relief and fast erosion rates. As drilled to date, the deposit extends for approximately 1,000 metres from east to west, 700 metres north to south and vertically for 1,000 metres. A schematic presentation of the "In Pit" resource is presented in Figure 1.

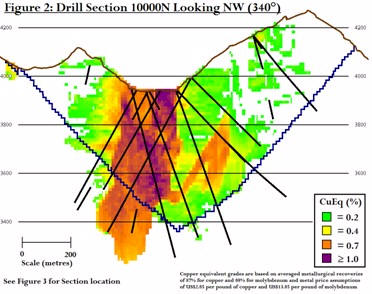

Drilling has established that the mineralization extends continuously through much of the surrounding host sedimentary rocks. See Figures 2 and 3 that show plan and drill sections through the resource block model (UTM Grids and vertical levels are provided for metric scale). Duran will begin its resource expansion drilling at the Aguila East area. Duran has sourced the required drill rigs and has optimized drill setups for the drilling planned through this terrain. Three trenches have been channel sampled along the drill section lines, easterly up the ridge face (and one to the west) and have demonstrated that the ridge hosts significant mineralization. Additional trenching is planned in 2012.





SRK Resource Estimation Methodology

The Aguila Project initial mineral resource estimate was prepared by SRK Consulting (Canada) Inc. (SRK).



The database used to evaluate mineral resources for the Aguila deposit consists of 46 core boreholes (23,400 metres) and four lines of channel samples (1060 metres). All drilling and sampling programs were undertaken by Duran between 2007 and 2011 with the exception of five boreholes completed by Rio Tinto between 1998 and 1999. All boreholes were completed using HQ and NQ drilling tools. Borehole collars were surveyed by differential GPS. Duran submitted approximately 278 core samples for specific gravity measurements to the ALS Chemex laboratory in Lima, Peru. SRK reviewed the specific gravity and lithologies logged for each interval and found that the differences in specific gravity with respect to lithology are minor. Therefore, an average specific gravity value of 2.78 was used to convert block volumes into tonnage.



The Aguila deposit was subdivided into three major lithological units comprised of two intrusive units and an enveloping sedimentary unit. Lithological boundaries for the main two intrusive units were interpreted and modelled as wireframe solids by Duran that were then reviewed by SRK. All assay intervals within the wireframe solids were composited to 6.0 metres. SRK evaluated the impact of high grade composite outliers in each zone using cumulative probability plots, histograms and examining the spatial distribution of higher grades with respect to other boreholes and adjacent composites. SRK implemented capping to limit the influence of high grade composites.



Variogram models were developed for each metal for the combined intrusive units and sediment units in the Aguila deposit. A sub blocked model was generated for the Aguila deposit using coordinates based on the local UTM grid. The parent block size is 12 by 12 by 12 metres. Sub blocking was carried out to three levels in the X, Y and Z directions. The estimation strategy for the deposit consists of ordinary kriging (OK) estimates for copper and molybdenum using a constrained estimate for the two intrusive units and an unconstrained estimate for the sediment unit. The variogram model for the main intrusive unit was assumed for estimating the secondary intrusive unit.



SRK calculated a copper equivalent grade for all estimated blocks. This calculation was based on metal price assumptions of US$2.85 per pound copper and US$13.85 per pound molybdenum, and averaged recoveries for intrusive and sedimentary units of rocks of 87% for copper and 88% for molybdenum. A copper equivalent ratio of 4.95 was used to determine these values in the block model....

....see release for full copy

-------  ------ ------    ------ ------ ------

Click here for the complete PDF copy of the NI 43-101 Report on the Aguila Project's Resource Estimate



The mineralized area established so far is large yet represents only a fraction of the prospective contact from one IP anomaly alone which stretches 1400m in length and is open in all direction. The deposit is host to a past producing open-pit mine with high grade copper molybdenum porphyry in the main intrusives surrounded by material that should result in a modest strip ratio. This expanding deposit is part of a major mineralized district actively taking shape with Peñoles active on its own (Racaycocha) porphyry adjacent DRV's claim line.

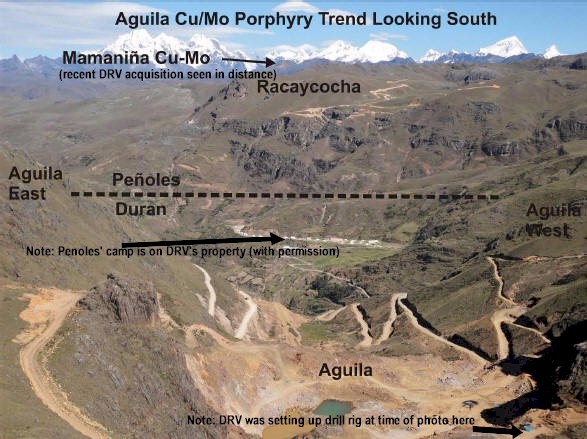

Figure 12. Area Photo Showing DRV's Aguila Property and Neighbour Peñoles (above). Visible in the foreground of the photo above is the open-pit from the past producing mine on Duran's Aguila property -- this is where Duran's main Cu-Mo deposit is located. Visible near the property line on Duran's side is the Peñoles camp. Peñoles has set up camp there (with permission from Duran) as their porphyry is on the north facing slope of the mountain above and Duran's property is the most practical place for their base of operations -- this underscores the beauty of the scenario unfolding; the size and scope of the exploration/development operation at the Penoles Cu-Mo find is large, growing fast, and Peñoles will need to ultimately deal with Duran. Peñoles has been intensively drilling (10 drill rigs were on site in 2012) what is understood to be a separate porphyry body just off Duran's claim line to the south and it also shares a separate porphyry body in the SW section of Duran's claim group. Any mine Peñoles hopes to build would ultimately need to involve Duran as DRV.V has a sizeable ore body on one side of the gully and all the flat land across the gully and sloping up to where Peñoles is drilling; DRV.V has the only logical place to build plus it would make no sense for two mines to be built.



Drilling to date -- 23,000+ metres (43 holes) of core drilling from 2007 - 2011

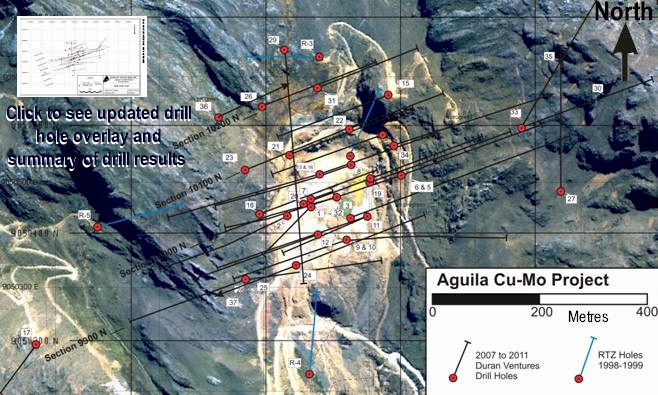

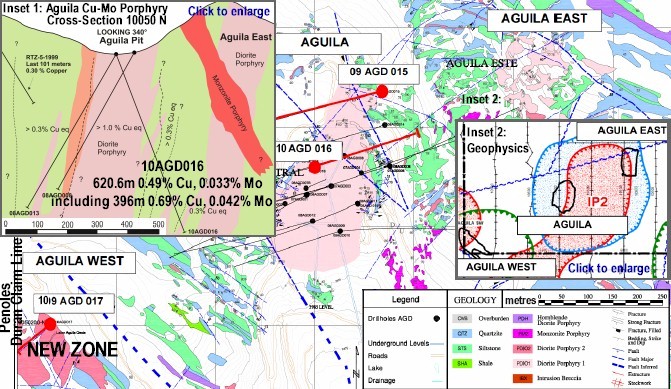

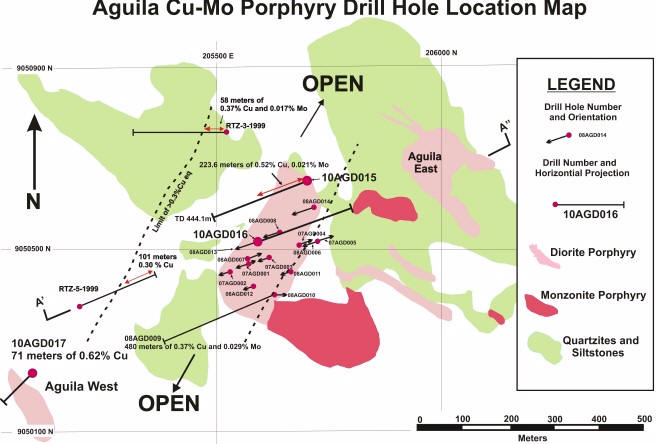

Figure 12. Select drill holes location map 1 (above). More recent drilling (seen below and on page 5 of the inset PDF) has affirmed the strength of the mineralized system at Aguila, as well as the considerable tonnage potential, and suggests the wall rock is minable which dramatically enhances the economics of the deposit as it will result in a modest strip ratio.

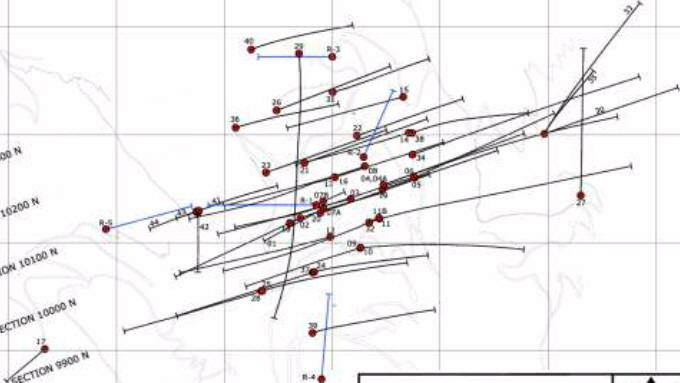

 Figure 13. Drill hole location map 2 (above). Overlay of most recent drilling (performed in 2011).





Figure 14. Building size at the Aguila Cu-Mo Porphyry (above). In the sectional diagram above we have indicated in blue as an example of where the overlay seen in figure 13 of recent (2011) drilling has drilled out the rock wall; a drill rig was carried up the ridge and the results seen on the news release of November 16, 2011 show for example hole 41, which was drilled towards the pit, intersected 490 metres of 0.31% Cu and 0.023% molybdenum in the sedimentary host rock (seen in green above, naturally significantly higher grades are found in the main intrusive rock (seen in pink above)) -- proving the wall rock is sufficiently mineralized. In fact hole 41, which is a 400 m intersection was drilled from the high peak on the west and it found grade all the way down. The same applies to holes on the other side and in between; holes 19, 4, & 5 drilled the wall rock between the two porphyries and those have grades. Similarly to the east up the ridge with holes 33 and 35 too. This is significant as the Aguila can be modeled as a modest strip ratio deposit. Mining MarketWatch Journal has looked at models of comparable deposits in Peru and found they are modeled down to 0.2% copper. Duran clearly has exceptional grades in the intrusive rock and adequate numbers in sedimentary rock; Hole 18 for example for the first 480 metres is almost 0.7% Cu, hole 20 DRV intersected 0.6% copper in the intrusive and the sediments are running between 0.2% and 0.3% copper.



Drill hole results from 2007 - 2010:

HOLE

FROM TO LENGTH Cu Mo CuEq
NUMBER (m) (m) (m) (%) (%) (%)
07 AGD001 0.00 250.00 250.00 0.650 0.023 0.805
07 AGD002 0.00 530.60 530.60 0.338 0.023 0.493
07 AGD003 0.00 510.15 510.15 0.525 0.043 0.816
07 AGD004 0.00 371.00 371.00 0.343 0.020 0.478
07 AGD004A 249.60 628.20 378.60 0.254 0.006 0.295
including 249.60 388.60 139.00 0.472 0.009 0.533
07 AGD005 0.00 401.00 401.00 0.209 0.011 0.283
08 AGD006 5.20 723.30 718.10 0.555 0.041 0.832
including 137.00 708.40 571.40 0.647 0.041 0.924
08 AGD007B 0.00 90.00 90.00 0.594 0.045 0.898
08 AGD008 0.00 522.30 522.30 0.626 0.049 0.957
including 0.00 342.40 342.40 0.853 0.046 1.164
08 AGD009 5.00 485.40 480.40 0.373 0.029 0.569
including 76.40 439.60 363.20 0.439 0.029 0.635
08 AGD010 6.90 574.00 567.10 0.147 0.011 0.221
08 AGD011B 1.00 605.30 604.30 0.425 0.029 0.621
08 AGD012 2.90 567.10 564.20 0.365 0.030 0.568
including 2.90 281.20 278.30 0.625 0.026 0.801
08 AGD013 0.50 578.90 578.40 0.427 0.046 0.738
including 0.50 146.75 146.25 0.931 0.043 1.222
including 0.50 458.60 458.10 0.497 0.053 0.855
08 AGD014 4.35 459.60 455.25 0.499 0.038 0.756
including 131.12 390.70 259.58 0.652 0.041 0.929
09 AGD015 0.40 444.10 443.70 0.368 0.021 0.510
including 0.40 224.00 223.60 0.516 0.021 0.658

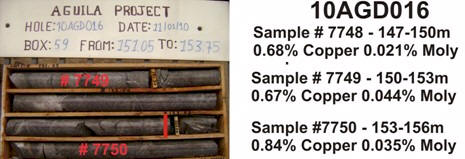

10 AGD016 0.00 620.60 620.60 0.490 0.033 0.720
including 0.00 396.00 396.00 0.690 0.042 0.980
10 AGD017 0.00 147.00 147.00 0.364 0.004 0.364
including 0.00 71.00 71.00 0.620 - 0.620

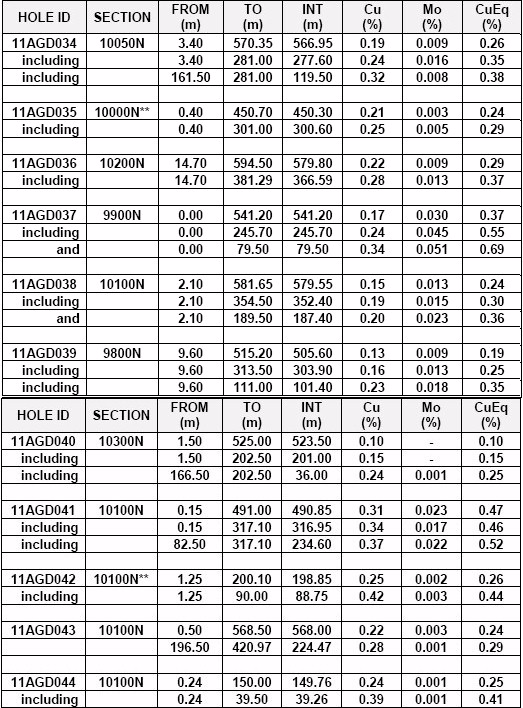

Drill hole results from 2011:

HOLE

FROM TO LENGTH Cu Mo CuEq
NUMBER (m) (m) (m) (%) (%) (%)
11AGD018* 0.00 564.5 564.5 0.61 0.029 0.81
including 0.00 480.8 480.8 0.69 0.031 0.93
11AGD019* 0.40 496 495.6 0.31 0.027 0.5
11AGD020* 0.00 640 640 0.41 0.033 0.64
including 0.00 333.9 333.9 0.60 0.035 0.85
11AGD021* 0.00 525 525 0.37 0.03 0.57
including 0.00 335 335 0.48 0.036 0.72
11AGD022* 0.15 320.5 320.35 0.48 0.021 0.62
including 0.15 117.5 117.35 0.87 0.029 1.06
11AGD023* 11.80 699 687.2 0.20 0.031 0.41
including 11.80 487 475.2 0.23 0.039 0.49
11AGD024* 0.00 590 590 0.21 0.019 0.34
including 0.00 189 189 0.30 0.022 0.46
11AGD025* 4.50 662.6 658.1 0.17 0.029 0.37
including 21.00 342.5 321.5 0.22 0.047 0.54
11AGD026* 0.40 665.8 665.4 0.22 0.008 0.28
including 0.40 302.5 302.1 0.33 0.016 0.44
11AGD027 3.20 122 118.8 0.20 0.004 0.23
  383.50  407.3 23.8 0.27 0.002 0.29
  440.50 463 22.5 0.30 0.001 0.3
11AGD028 0.50 127.5 127 0.20 0.004 0.23
11AGD029 2.00 1001.1 999.1 0.33 0.029 0.53
including 2.00 499.4 497.4 0.24 0.025 0.56
including 499.40 806 306.6 0.55 0.047 0.87
11AGD030 0.15 92.5 92.35 0.19 0.007 0.24
  140.00 186.2 46.2 0.23 0.004 0.26
11AGD031 0.15 301.5 301.35 0.26 0.011 0.33
  354.00  378.5 24.5 0.23 0.002 0.24
11AGD032 0.60 398.5 397.9 0.20 0.023 0.36



398.50

515

116.5

0.34

0.01

0.41

11AGD033

0.30

252

251.7

0.33

0.004

0.36







Duran's president, Jeffrey Reeder, P. Geo., has an abundance of experience drilling out/defining porphyries and appears to have strategically delineated sizeable tonnage and filled in gaps in the resource during this last round of drilling. Hole 29, which is the most northern hole (it was drilled from the north), is fairly telling; Duran drilled a -65 degree angled hole all the way to the south as it already had drilling in both directions to the east and to the west making a triangle down at depth that needed to be filled -- hole 29 drilled 999 metres of .33 Cu and 0.029 Mo which means from the vertical to the horizontal there was over 800 metres and we know from hole 33 & 35 up on the hill the mineralization is well over 1000 metres. In looking at the numbers for hole 29 the first ~500 metres was in mineralized sediment running 0.37 Cu equivalent, 0.56 Cu equivalent, the next 306 metres DRV intersected high grade intrusive rocks (0.87% Cu eqiv.) and then the last 200 metres was lower grade intrusive rock that was still in grade.



Related releases:

January 29, 2013 "Duran Ventures Initiates Aguila Drill Program"

December 11, 2012 "Duran Options Concessions Adjacent to Aguila Copper/Moly Project in Peru and Acquires Mamanina Historical Database and Drillcore"

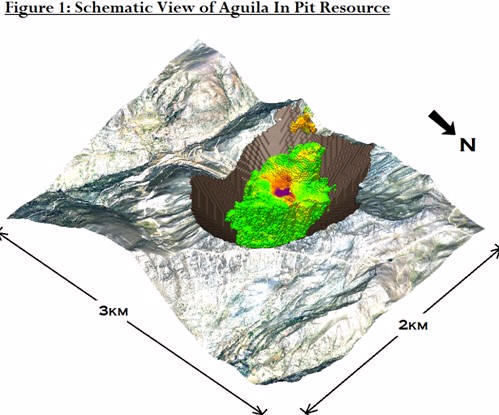

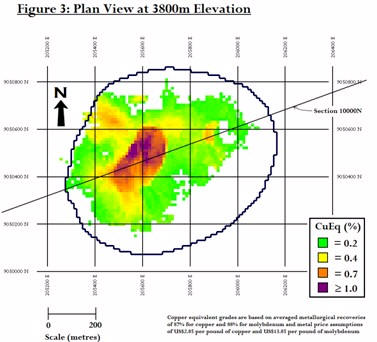

March 8, 2012 "Duran Reports Initial Aguila Copper/Molybdenum Resource Estimate of 375 Million lbs Copper & 22 Million lbs Molybdenum Indicated and 2.1 Billion lbs Copper & 166 Million lbs Molybdenum Inferred"

Nov. 16, 2011 "Duran Ventures Reports Final Results From 2011 Aguila Drill Program: Drilling Continues to Intersect Wide Intervals of Copper/Molybdenum Mineralization"

Sept. 15, 2011 "Duran Ventures Reports Latest Positive Results From 2011 Aguila Drill Program: Highlights include 999.1 Metres of 0.33% Copper and 0.029% Molybdenum (0.53% Copper Equivalent) incorporating 306.6 metres of 0.55% Cu and 0.047 Mo (Cu equivalent value of 0.87%)"

June 6, 2011 "Duran Ventures Reports Positive Initial Results of 2011 Aguila Drill Program: Highlights include 480 metres of 0.69% Copper (“Cu”) with 0.031% Molybdenum (“Mo”) and 333 metres of 0.60% Cu and 0.035% Mo."

Feb. 23, 2010 "Duran Announces 396.0 Metres of 0.69% Copper and 0.042% Molybdenum (0.98% CuEq) in Drill Hole 10AGD016"



Jan. 13, 2010 "Duran Drills 223.6 Metres of 0.51% Copper and 0.021% Molybdenum at Aguila"



Highly favorable metallurgy - 93% copper & 91% molybdenum recoveries

Fig 15. Aguila Chalcopyrite Ore

Duran announced metallurgy results on January 9, 2012, see news release entitled "Duran Reports 93% Copper and 91% Molybdenum Recoveries From Initial Metallurgical Test Work on the Main Aguila Intrusive Porphyry";



The metallurgy is very favorable with 93% recoveries on the copper and 91% on the molybdenum in the intrusive and no unfavorable elements such as arsenic. In fact the metallurgy appears superior to many ore bodies that were subject of buyouts over the last few years. The bulk concentrates are very high in both copper and molybdenum which means DRV can have two separate concentrates; DRV hopes to separate the moly into a separate concentrate and do off-take agreements on the Moly as well.



Figure 16. Geophysics

Enormous Size Potential

The geophysics map Figure 16 (found to the left) is a compilation of all the geophysical anomalies from the 2km x 3km grid Duran ventures had performed on the property in 2009. In the map the largest IP anomaly is labeled "IP2" and the location of hole 16 is indicated which intesected 480 metres of 0.69% Copper with 0.031% Molybdenum and 333 metres of 0.60% Cu and 0.035% Mo., Duran collared outside the intrusive and drilled into the anomaly intersecting tremendous grades -- the entire area all along the contact of that IP is very prospective.







Figure 18. Surface Map

To date most of Duran’s drilling at Aguila has focused in and around the Aguila pit (central zone) where Duran has established a large deposit, encountering numerous stellar intercepts flanking this IP anomaly. The mineralized area established so far is large yet represents only a fraction of the prospective contact from one IP anomaly alone which stretches 1400m in length and is open in all direction. The size potential at Aguila is enormous as there are many other IP anomalies on the property believed to be equally as prospective.



Figure 18 shows the intrusive trend is going slightly to the SW, mimicking the IP anomaly rout. Remember 2% chalcopyrite will give you a weaker anomaly than 3% pyrite on an IP so drilling the highest IP numbers are not always the best thing -- it appears the best grades are flanking the IP anomaly. Right in the pit the trend is NS then it deflects and goes to the SW – that is what the intrusive body does too and it appears prospective all along that contact towards Aguila West.



Duran shares zone with Penoles in Aguila West section

Figure 19. Map click to enlarge [PDF 3MB]

Peñoles drilled off the southern end of Duran Ventures' Aguila copper-molybdenum porphyry system/claim line. Figure 19 shows the the location of Peñoles' drilling on what they call their Racaycocha Project/Racaycocha discovery. However Penoles also shares a porphyry with Duran.

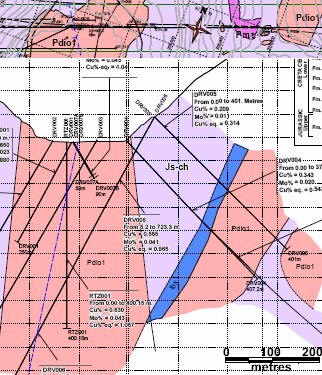

In the February 23, 2010 release Duran revealed "First Hole in Aguila West Reports 71.0 Metres of 0.62% Copper". This hole is ~500m to the SW of Aguila central in an area where it is believed there are several porphyries trending NE. This hole was drilled in the same direction as all the other drilling that was done, mainly due to outcrop exposure and Duran stopped it at the claim line of Penoles.



Figure 20 (below) Shared zone



Duran has only drilled one hole here yet has managed to show there is yet another porphyry with copper bearing intrusive rock. Duran intersected a low angle fault so the next time Duran will drill it to the NE and hit it down dip. Since finding this zone DRV had decided to not spread itself too thin and felt it was best to concentrate on drilling out the main Aguila porphyry in 2011, however Duran (or whomever buys them out or whomever joint ventures) should come back here in the future with a drill to the south-east and drill to the north-east to intersect the down dip extension of the Aguila West. Penoles did drill several holes into the shared prophyry on its side of the claim line however they do not share findings.

Penoles in proximity to Duran -- Penoles seeks world class size
Aguila, Pasacancha, Aguila West are all situated on a south facing slope and Penoles's Rayacocha Project is located across the valley on the north facing slope. Ideal for mining situation since any large operation would naturally be established between the two areas (on Durans' ground -- see Figure 12 (further above) as a picture says a thousand words).

The significance of Penoles with ten drill rigs only a couple thousand meters or so to the south of Aguila's main pit is huge as Penoles is not motivated by projects with small scope/potential; the large porphyry clusters Duran and Penoles are targeting are what big miners seek to produce and generate multi million dollar revenues and make the bottom line. Duran Ventures and Penoles are holding key ground in this mineral district and both have about the same amount of ground.  These porphyry-type deposits typically amount to large bulk tonnage ore bodies of systems and account for most of the copper production in the world, and also represent significant sources of gold, silver, and other base metals. The presence of Penoles adding value to the area and the fact they pulled up along side Duran, in part, is extremely beneficial to DRV.V shareholders and the inherent value of Duran's project.


Mining MarketWatch Journal notes the prospects of a Major coming into this area to take advantage of the size potential that Duran and Penoles are revealing is a distinct possibility, astute investors should be looking to position themselves now to take advantage of what is developing -- Duran now has large quantified tonnage on its ground and Penoles has likely defined even more (since they have a bigger budget and had 4 drills going full blast in 2011 and 10 drill rigs in 2012) -- some big company is going to come in and buyout DRV.V and deal with Penoles or Penoles will buy DRV.V out – one of the two are probably going to happen.



Background on the Aguila Copper-Molybdenum Project

Figure 21. Recent drilling at Aguila

Duran Ventures has been active at the El Halcon concession Aguila project since 2003 and has now consolidated 100 percent ownership. Originally comprising 100 hectares of property area, the project includes the past producing Aguila open-pit copper mine. The historic resources consist of a near surface porphyry structure bearing copper and molybdenum, from which a low volume mining operation had been active in the 1970s.


Duran Ventures was able to add surrounding property acquisitions to its holdings to gain control of the area immediately adjacent to the historic deposit. As preliminary exploration work was completed a larger area of interest was identified. Additional property area was also acquired elsewhere in the district on the premise that other porphyry structures may be awaiting discovery in nearby targets that bear a similar geological setting.



In 2008 a total of 14 drill holes were completed which have demonstrated a large tonnage of continuous mineralization, and the deposit remains open laterally and to depth. The first 8 drill holes were to investigate the potential around the historic workings of a past producing open pit mine. Another 7 holes were completed in a second drill fence to step out the original discovery zone and expand the limits of the known deposit. High grade and consistent lateral extension have been reported in assay results; see June 3, 2008 release 'Duran Report Entire 718.1 Metre Hole 6 Averages 0.555% Cu and 0.041% Mo') and July 14, 2008 release 'Duran Ventures Report Over 1% Copper Equivalence Averages' -- these demonstrated the existence of a near surface, copper-molybdenum porphyry structure with significant tonnage.



Figure 22. Aguila main pit Click to enlarge Aguila porphyry main showing where the drilling has been. Lots of good road access to move rigs around easily.

World class bulk tonnage Cu-Mo potential: Aguila copper-molybdenum deposit has yielded impressive grades in the order of 0.5 - 0.6% copper (ie.718m grading 0.555% Cu and 0.041% Mo = 1%+ copper equivalent ) and is host to a past producing open-pit mine. Drilling has expanded the deposit to the west, east and at depth, encountering higher grade porphyry than other companies in the region, the deepest hole is over 800m from surface down and is still in copper mineralization. Recent exploration work at Aguila has now outlined a much larger target, the dimensions of the porphyry are believed to be large and results from recent exploration efforts are expected soon and will improve on the dimensions. Indications are positive for having big porphyry at depth. There is strong potential for further expansion of the Aguila deposit through additional drilling.



When comparing Duran's potential to established Cu-Mo deposits in the region such as recent success stories like Norsemont Mining, which was bought out by HudBay Minerals, it is important to note that the grades at Duran's Aguila porphyry are higher in the main intrusive and favourably comparable when factoring the mineable sedimentary rock wall. Norsemont Mining has a defined resource of ~277M tonnes -- Duran has phenomenal grades and everything points to the fact Duran has potential for similar size porphyry and a correspondingly significant upside move in valuation. Transactions over the last several years involving copper deposits similar to what Duran Ventures is targeting in Peru have seen multiple deals made in the $400M - $800M range.



Near-term exploration/plans for Aguila Q4 2012 - 2013



• Further drilling to complete a resource update for the Aguila Project following the drill program


• Preliminary Economic Assessment following the resource update

• Commissioning an environmental baseline study for the Aguila Project.



------ ------ ------



Region - stable, mining friendly region

In Peru

Peru is unanimously agreed in the mining community to be a stable, mining friendly region. The mining claim and permitting process is highly transparent and clearly laid out. At the tail end of September 2011, Peru passed three new mining laws. The new mining law provides clarity for mining companies, it modifies some mineral royalties and establishes a new legal framework for the industry. The end result is that Peru is now considered stable and mining-friendly, there is no uncertainty, and the level of interest from majors regarding junior resource deposits/projects of significance in Peru is high. The new royalty is not prejudicial towards juniors and affected mostly the large established producers that had sweetheart deals that kept their royalty payments low. Numerous new projects are progressing including Peru miner Milpo's $400 million investment to start up of the copper-molybdenum Magistral deposit.



------ ------ ------



3) Ichuña Copper-Silver Project - Central Peru - in JV with Rio Alto Mining (Rio has option to earn up to 65%)



Joint venture terms: For specific terms of JV see related September 17, 2012 news release entitled "Duran Signs Letter of Intent With Rio Alto Mining for Minasnioc and Ichuna Properties in Peru; and Announces Private Placement Financing"; In short, Rio Alto Mining may earn 65% by spending $8 million in exploration costs and paying $500,000.



Duran's Ichuña project is adjacent to Gold Fields-Buenaventura's 7.6M oz gold equivalent Chucapaca discovery



Figure 23. Copper showing on Duran's Ichuña property; copper oxide is dripping out of the rocks.

  • Located adjacent and less than 3 km from the Goldfields and Buenaventura’s Canahuire Zone within the Chucapaca project (7.6 million ounce gold equivalent resource *) in Southern Peru

  • A new emerging mineral camp Blind Discovery Hole drilled in September 2008

  • Strong copper-silver mineralization on surface

  • Numerous untested drill targets

  • Over 800 surface samples taken

  • Recently completed geophysics survey showing parallel structures similar to the Canahuire Deposit

  • Drill Permit and Land use agreements in place

  • Road Building and Drill Site Construction started June 2012

The Ichuña Copper-Silver Project (1,000 hectares) is located 120 kilometres northeast of Arequipa in the Department of Moquegua in Southern Peru and adjacent to the Chucapaca Project of Gold Fields Limited ("Gold Fields") and Compañia de Minas Buenaventura S.A.A ("Buenaventura"). Gold Field's Canahuire Zone is located less than 3 kilometres from the southern boundary of the Ichuña Project.



Duran's Ichuna property is completely ringstaked by Gold Fields

Gold Fields has blanket staked the entire area however Duran Ventures was there several years before this discovery was made. Duran has taken a large number of samples over the last couple years and performed geophysics, the interpretation of which show Duran Ventures's Ichuna as highly prospective for major discovery. DRV is permitted to drill.







Figure 24. Map showing location of Ichuna Property in relation to the Canahuire and Chucapaca projects of Gold Fields and Buenaventura. Also active in the region with similar geology is Bear Creek Mining which has drilled 60 m of 7.20 opt Ag, 40 m of 3.56 opt Ag, and 82 m 2.44 opt Ag (area diagram showing proximity of DRV, Bear Creek, and Gold Field/Buenaventura relative to each other may be seen here).



Duran Ventures' sampling program to date has yielded quality values at surface including 27 metres of 6 ounces silver with .32% copper and 10 ounces silver with .2 copper. DRV has found strong surface Cu-Ag mineralization covering an area of 2.5 x 1.0 km, strong copper oxide mineralization, and high grade Silver mineralization flanking geophysical anomalies.



Channel Sample Highlights Include:

See related October 6, 2010 release entitled "Duran Reports Significant Silver and Copper Values from Ichuña Project"

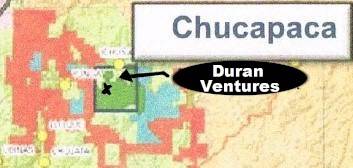

We have circled the ~area Duran Ventures' Ichuna is located on an image of the geology of the area lifted from Gold Fields' overview presentation on Chucapaca found at the following URL:

http://goldfields.co.za/presentations/2011/south_america_chucapaca_15112011.pdf (page 10).



Figure 26. District Geology with DRV's Ichuna intrusive rocks circled. Gold Fileld's Canahurie discovery was a blind discovery (there was no outcropping), Duran Ventures has very similar geology in target areas of Ichuna where sub volcanics intrude the limestones -- that is why DRV has a lot of copper and silver mineralization, Gold Feilds has found where gold replacement is in the limestone and DRV believes it can do the same.



DRV has similar IP signature at proposed drill target to Gold Field's major discovery IP

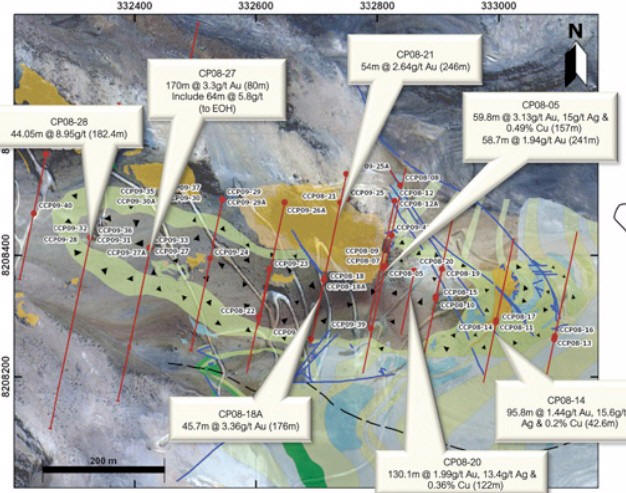

A close look at the IP section at the major discovery zone of the aforementioned Gold Fields Chucapaca overview PDF (page 24) is very telling for DRV as Duran has identified a very similar IP anomaly with the same twists....



Figure 27 & 28 Geophysics -- Ripe for major discovery in 2013. DRV has high grade Silver mineralization flanking geophysical anomalies. There is coincident resistivity and chargeability trending NW showing possible strong structural control. There is no outcrop exposure of the anomaly (just as Gold Fields had none). Important to note is that Gold Field's anomaly trends ~290 degrees and similarly Duran Ventures ~trends degrees (the same general direction). When comparing DRV's high IP (the big red one labeled "IP1") to an aerial topographic photo of the same area it's following and trending the valley which is exactly similar to how Gold Fields' drilled their anomaly and is where their ore body was found (only ~3.5 km away from DRV).



Near-term exploration/plans for Ichuna Q4 2012 - 2013



• Conduct initial exploration program with Rio Alto Mining allow Rio to earn 65% by spending $8million and paying $500,000 over 4 years.


• Ichuña Diamond Drill Program – 4000 meters.



------ ------ ------



4) Don Pancho Silver-Lead-Zinc Project - Central Peru - In JV with a private Peruvian mining company that has an option to earn 70%



Joint venture terms: For specific terms of JV see related December 4, 2012 news release entitled "Duran Signs Definitive Agreement for Don Pancho Property in Peru"; In short, the private Peruvian mining company is to earn 70% interest in Duran's 600 hectares Don Pancho's polymetallic project in consideration of a US$2,030,000 payment schedule to DRV, completion of US$3,500,000 in exploration, and undertaking to commence an economic study.



 The 600 hectares Don Pancho Silver-Lead-Zinc Project is a prime mineralized property next to a 2000TPD mill now being built located in the Lima Department. Trevali Resources Corp. is recommencing operations at the former Santander Mine in west-central Peru (source: http://www.trevaliresources.com/s/Santander.asp ).



Figure 29. Partial claim map of Trevali with approximate location of Duran Ventures' 600 hectares superimposed on map



There is a large breccia body on the Don Pancho property that runs ~400m wide and 800m long that has numerous lead-zinc showings all over the place -- Duran has taken a number of samples and many are up to 250 grams of silver (~8-10 ounces) per tonne and 4% - 5% lead-zinc. These are very similar numbers as to the Trevali numbers and it is the same geology.



This project is approximately 10 kilometres to the west of Trevali Resources’ Santander Mine, which has updated a resource estimate (April 2009) of 5.3 MT of 3.34% Zn, 1.27% Pb, and 38 g Ag/T (indicated category) and 2.24 MT of 2.92% Zn, 0.5% Pb, and 18 g Ag/T (inferred category).

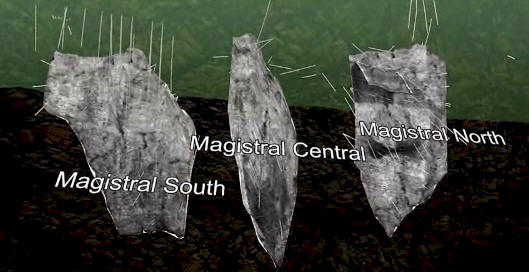

Figure 30. Large polymetallic pipes on Trevali's ground -- Duran and its JV partner believe similar structure(s) exist on the Don Pancho property.



The Don Pancho has similar geology to the Santander Deposit, with carbonate-replacement style Ag-Pb-Zn mineralization. The Don Pancho alteration system covers a northwest-trending area of over 300 x 800 metres, with large galena and sphalerite bearing breccias, veinlets, and stockwork zones visible on surface.


Hatum Minas conducted several sampling campaigns on the property, including the collection of 41 surface grab and chip samples, and a total of 28 underground chip and channel samples. Surface samples have returned up to 238 grams silver per tonne, 9.49% lead, and 4.15% zinc. Underground sampling returned up to 838 grams silver per tonne, 11.6% lead, and 7.92% zinc.



Near-term exploration/plans for Don Pancho Q4 2012 - 2013



• Conduct 3000 metres of drilling.



------ ------ ------      ------ ------ ------

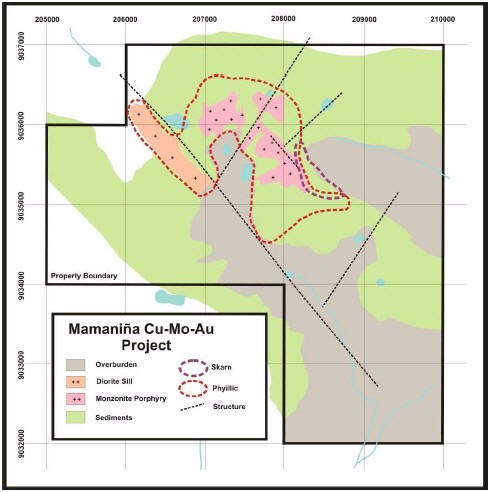

5) Mamanina Cu-Mo-Zn-Au Project, Central Peru - 100% Owned

High silver values Past producing Significant bulk tonnage potential  Silver-Gold-Lead-Zinc target

Figure 31. Image of showing Mamanina in background



• 1800 Hectares located 14 km south of Aguila.

• Previous Exploration by Queenstake Resources in 1997 identified classic porphyry style mineralization.


• Limited scout drilling by Monterrico Metals in 2002 returned encouraging Cu results in the Skarn Zone.


• Gold Zone discovered southeast of the porphyry intrusives.



This property came open for staking in early 2011. As stated earlier, as a result of having a highly skilled technical and management team active in Peru for over 17 years, DRV was able to secure and outmaneuver other interested parties for this prized property. See related April 14, 2011 release entitled "Duran Ventures Acquires Mamaniña Porphyry Copper-Molybdenum-Gold Concessions in Peru".



Also see December 11, 2012 release entitled "Duran Options Concessions Adjacent to Aguila Copper/Moly Project in Peru and Acquires Mamanina Historical Database and Drillcore"



The concessions are high quality copper molybdenum exploration targets located approximately 14 kilometres to the south of the Company’s flagship Aguila Copper-Molybdenum Porphyry Project. The Company now holds a total of 1,800 hectares in three contiguous concessions.



Queenstake and Alamos found copper-molybdenum bearing porphyritic stocks hosted by clastic and carbonate sediments at Mamaniña. Carbonate replacement skarn-type mineralization occurs at contacts between the intrusive and sedimentary units. An airborne magnetic and radiometric geophysical survey defined an anomaly two kilometres in diameter which coincides with these mineralized zones on surface. Sampling by Queenstake and Alamos returned values of up to 2.1% copper, 0.6% zinc, and 9.48 grams of gold per tonne. The following link refers to a joint news release filed on Sedar by Queenstake and Alamos dated November 3, 1997:

http://www.sedar.com/GetFile.do?lang=EN&docClass=8&issuerNo=00012639&fileName=/csfsprod/data7/filings/00047098/00000001/c%3A%5Cjunk%5Cjnr97-2.pdf





The property essentially sat unexplored since 1997 except for one tiny drill rig that was hoisted up the hillside in 2002 by Chinese interests; they drilled the skarn and it is purported that they intersected 25 m of 1.65% copper however did no follow through. Historic surface samples are up around ~2% copper with significant gold results.



------ ------ ------      ------ ------ ------



6) Pasacancha Silver-Lead-Zinc Project - Central Peru - 100% Owned

High silver values Past producing Significant bulk tonnage potential  Silver-Gold-Lead-Zinc target

Figure 33. Duran's Aguila and Pasacancha Regional Geology and Topography Click to enlarge & expand [PDF]



Location: Pasacancha is a continuation of Aguila; Duran Venture's Aguila Project (reviewed further above) and Pasacancha project are part of the same geological system.



Peru was the second top silver producing country in the world in 2011, responsible for a recorded 109.8 million ounces (source Market Equities Research Group). Miners know ‘the best place to find a new resource is amidst the workings of an old mine’ -- The Pasacancha concession is host to the past producing Pasacancha mine, where historical production focused on high grade silver veins that have been mapped across a large part of the property.


The Pasacancha mine workings are situated at the top of a hill above a town with the same name. Several tunnels have been identified which access the vein deposits at various elevations. The combined workings have been mapped for several kilometers and this extensive underground infrastructure serves as evidence of the intensity of mineralization throughout the area. The historic mining activity was concentrated on the highest grade veins and the project geologists have begun work to search for deposit areas of interest that were overlooked by the previous mine operator.



Early stage exploration work at this target included soil sampling and trenching programs that covered a much wider zone surrounding the old mine workings. The results from this work indicated the potential for a large area of alteration bearing lower grades of silver and gold, along with the presence of significant lead and zinc values. This has been interpreted to suggest that a potential bulk tonnage poly-metallic deposit of disseminated alteration may exist at Pasacancha.



Figure 34. Drill rig at Pasacancha

Rehabilitation work has been completed at several of the mine workings. A comprehensive sampling program has tested the exposed rock surfaces within these tunnels, and attractive values were reported; see April 24, 2008 release '0.17 g Au/t, 69.1 g Ag/t, 0.6% Pb and 0.9% Zn across 384 Metres at Pasacancha in Peru'. In some cases the data represented a lateral extension of several hundred meters into the hillside. These results are further encouraging evidence that a much larger mineralized system exists at Pasacancha.


Considering the impressive lateral extent that has yielded positive results from the early phase exploration work, there is the potential to define a deposit at Pasacancha that could amount to 100+ million tonnes or more. In the context of a large open pit mine, an average silver grade of at least 2-3 ounces per tonne, plus associated by-product credits from other recoverable metals, would represent an attractive economic potential for development.

Figure 35. Underground high grade silver breccia High grade silver breccia amongst sulphides shows bulk tonnage




Duran Ventures plans to conduct a thorough and comprehensive exploration program designed to test for the existence of a large deposit of disseminated lower grade silver-gold-lead-zinc mineralization. Despite relatively challenging topography and rock conditions, the company recently reported the first successful drill intervals from Hole 4B; see January 26, 2009 release 'Duran Reports Pasacancha Hole 4B Results: 104 metres (344 feet) of 35 g Ag/t (1.1 oz Ag/t) Including 34 metres (114 feet) of 55 g Ag/t (1.8 oz Ag/t) and 36 metres (119 feet) of 40 g Ag/t (1.3 oz Ag/t)'. This progress has confirmed the preliminary exploration model. In order to continue with a more intensive drill program Duran Ventures applied for and was granted a C Permit from the Peruvian Government. Follow up work is planned with further drilling programs, with the objective to establish a large tonnage of mineralization by expanding the lateral boundaries through step out drilling.



------ ------ ------      ------ ------ ------



7) Panteria Porphyry Copper Prospect - Central Peru - 100% Owned by Duran Ventures



The Panteria Porphyry Copper prospect is located in the Department of Ica in south-central Peru. It consists of twelve contingious concessions totalling 5,300 hectares. Rio Tinto Zinc operated this project in the early 2000’s, and Hatum acquired the concession in 2007. Rio Tinto conducted a very limited exploration program comprising of two or three diamond drill holes. The information from Rio Tinto’s work program is currently unpublished, however the company will inquire about obtaining the data. Hatum’s initial sampling program at Panteria confirmed widespread anomalous copper, gold, and silver over an 800 by 250 metre zone, with local quartz-sulfide stockworks and veining in porphyritic intrusive rocks. There are abundant copper oxides and carbonates on surface with indications of strong surface leaching of copper and iron sulfide minerals. Panteria has all the hallmarks of a significant supergene copper deposit with an underlying hypogene porphyry copper system.



Duran has advanced with surficial geological mapping of over 200 hectares, and has collected over 200 chip, channel, and panel samples. Duran geologists have identified extensive zones with stockwork quartz veinlets and oxidized pyrite, which are part of a large phyllic alteration system that grades outwards to zones of argillic and propylitic alteration. The alteration system appears to be controlled by a northeast trending structural zone. Duran's geologists have seen a lot of copper mineralization associated with quartz. They found magnetic stringers in the potasic alteration zone, indicating another porphyry target.




Duran's Management & Technical Leadership:  Skip to top

The current board of directors has a well rounded combination of people that each contribute expertise in disciplines necessary for a successful mining entity.



Jeffrey J. Reeder, P. Geo., President, Chief Executive Officer, Director

Jeffrey J. Reeder, P. Geo., has a B.Sc. from the University of Alberta and since 1992 has been registered as a professional geologist with the Association of Professional Engineers and Geoscientists of British Columbia. Mr. Reeder is the geologist that originally identified and acquired the Aguila copper-moly project in Peru for MacMillan Gold Corp. (now a wholly-owned subsidiary of Duran Ventures). Mr. Reeder has 16 years of experience in Peru and is fluent in Spanish. Mr. Reeder's experiences prior to joining MacMillan Gold included working with Noranda Exploration and the Hunter-Dickenson Group of Companies. Mr. Reeder was also responsible for identifying the Pinaya Copper-Gold project currently being explored by AM Gold Inc.


Steve Brunelle, Director
Mr. Brunelle is a Canadian geologist with 29 years of experience in mineral exploration throughout the Americas. He has been an officer and director of several resource companies, most recently, Stingray Copper Inc. and prior to that, Corner Bay Silver Inc. At Stingray, the Mexican bulk mineable oxide copper deposit "Èl Pilar" was taken to feasibility in 2009 and Stingray was subsequently acquired via merger. At Corner Bay Silver, the bulk mineable silver deposit “Alamo Dorado” was taken to feasibility and the Company was acquired by Pan American Silver Corp. Mr. Brunelle is presently the CEO and President of Amerix Precious Metals Corp., a director of Rio Silver Inc. and Messina Minerals Inc. During the 1990’s Mr. Brunelle was the President of MacMillan Gold Corp. at the time of the assembly of the Aguila area properties in Peru..



Alex Black, Director
Alex Black lives in Lima, Perú and has 30 years' experience in the mining industry. Mr. Black holds a BSc in Mining Engineering from the University of South Australia and is a member of the Australasian Institute of Mining and Metallurgy. Mr. Black is currently the President, CEO and a Director of Rio Alto Mining Limited, which operates the La Arena gold mine located in north central Perú.



David Prins, Director
David Prins is a Civil Engineer with extensive experience in the evaluation, design, planning and subsequent development execution stages of mining projects, principally in Latin America. Mr. Prins' previous position was as President and CEO of Explorator Resources Inc. Prior to this he was the principal of his own Santiago, Chile, based consulting firm which provided project evaluation and management services to many leading precious and base metals mining companies. Mr. Prins has also worked for Placer Dome Project Development Group directly and indirectly for a period of over 16 years which included a 10 year period at the Zaldivar Mine in Northern Chile.


Oscar Francisco Pezo Camacho , Director and Vice-President, Corporate Development
Based in Lima, Peru, Mr. Pezo is a Peruvian National and is well known in the Peruvian mining and financial communities. From January 2011 to February 2012, Mr. Pezo was the CEO of NCF Bolsa SAB, a Peruvian brokerage house based in Lima. Prior to that, from 2004 to 2010, he was one of the founding shareholders and CEO of NCF Inversiones S.A., a Peruvian financial group experienced in Peruvian capital markets and holding direct investments in junior mining companies with projects in Peru, and the parent company of NCF Bolsa. Mr. Pezo has a degree in Industrial Engineering from Pontificia Universidad Catolica del Peru and an MBA from Universidad Peruana de Ciencias Aplicadas (Lima, Peru).



Daniel Hamilton, Chief Financial Officer
Mr. Hamilton has a Bachelor of Commerce and a Bachelor of Administration from the University of Ottawa. He brings over 25 years of post-qualification experience in senior accounting and financial roles. He previously served as Chief Financial Officer of Crystallex International Corporation and his experience includes Vice President, Controller for Amec Americas (a multi-national engineering and project management services firm) and Group Controller, Zinc at Noranda (now Xstrata Zinc).




Note: This list is not intended to be a complete overview of Duran Ventures Inc. or a complete listing of Duran's projects, Mining MarketWatch urges the reader to contact the subject company and has identified the following sources for information on Duran Ventures Inc.:



For more information contact Duran Ventures Inc.'s head office at: Ph (416) 867.1591


E-mail: info@duranventuresinc.com   Company's web site: www.duranventuresinc.com

SEDAR Filings: URL







Welcome to Mining MarketWatch



We provide insight into resource companies, many which are so often overlooked gems and can provide exceptional potential to richly reward investors.  The companies we select offer outstanding properties, management and experience in the mining/exploration industry.

O Free Newsletter/Membership

Name:

Email:





Sector NewswireTM Editorials:



Analysis:



Precious Metals News:



Sector NewswireTM Top News Stories:



[Most Recent Quotes from www.kitco.com]

[Most Recent Quotes from www.kitco.com]

[Most Recent Quotes from www.kitco.com]

[Most Recent Quotes from www.kitco.com]







-----------------------------

Content found herein is not investment advice see Terms of Use, Disclosure & Disclaimer. This is a journalistic article and the author is not a registered securities advisor, and opinions expressed should not be considered as investment advice to buy or sell securities, but rather journalistic opinion only. Technical mining terms used by the writer may be used/expressed in simplified layman terms and should not be relied upon as appropriate for making investment decisions unless the reader contacts the company directly for independent verification.




-----------------------------

http://miningmarketwatch.net/drv.htm    http://miningmarketwatch.net/abi.htm    http://miningmarketwatch.net/exs.htm



©2003 - 2013 Mining MarketWatch - MiningMarketWatch Home Page - About Mining MarketWatch - Terms of Use, Disclosure & Disclaimer
